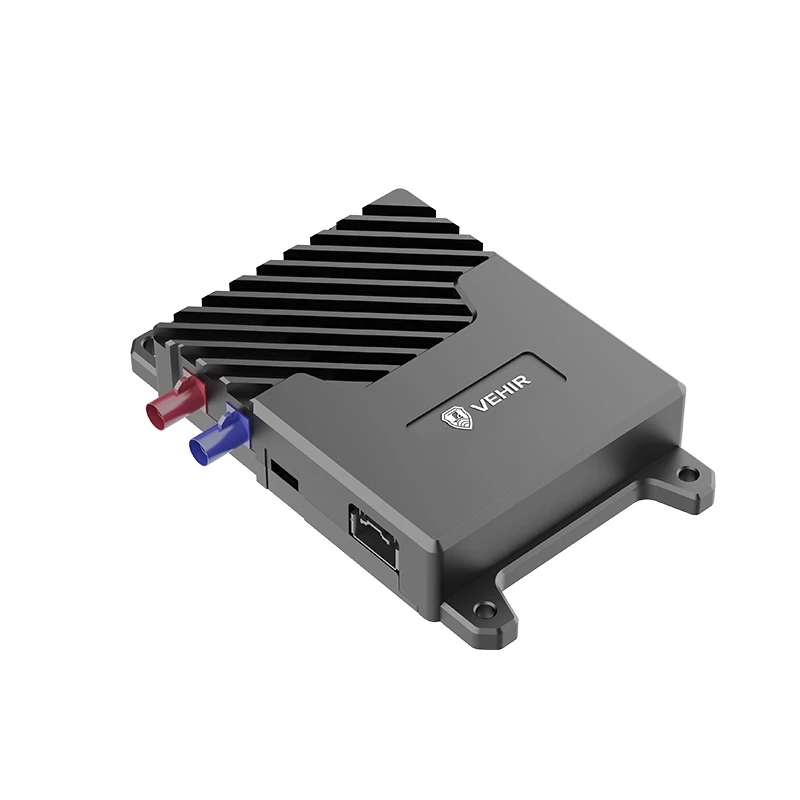

N-Driver P101B

Intelligent Algorithm: Accurately identifies pedestrians/vehicles/animals, providing intelligent collision warnings.

High Cost-Effectiveness: More economical and practical.

Flexible Installation: Abundant interfaces, flexible adaptation, multi-form output, and easy secondary development.

Inquire Now Download Next Products

Key Parameters

Specifications	Indicators
Output Resolution	384 x 288
Field of View	28° X 21°
Frame Rate	≥25FPS
Start-up Time	≤8.5s（normal temperature）
Communication Interface	USB(Type-C port)
Video Output Interface	RCA connector
Video Output Format	Emulates CVBS, USB (RNDIS)
Video Output Resolution	PAL@720 × 576 NTSC@720 × 480
Audio Interface	Supports PWM output to drive an external buzzer
Shutter	Auto Shutter Speed Compensation
Input Voltage	1、TYP 12V（DC 9-16V） 2、 USB-powered（4.5V-5.5V）
Power Consumption	≤5W (@12V without window heating enabled) ≤8W (@12V with window heating enabled)
Operating Temperature	－40℃～＋85 ℃
Detection Range	People (1.75 x 0.5 m) ≥ 150 m Vehicles (1.75 x 1.75 m) ≥ 350 m
Recognition Range	People（1.75X0.5m）≥80m Vehicles（1.75X1.75m）≥100m
Dimensions	Camera: 36 × 36 × 46.5 mm Control box: 100 × 80 × 24 mm
Weight	Camera: ≤120 g Control box: ≤500 g
IP Rating	IP67&IP69K
Certifications	CE Certification

This product features pedestrian collision warning and forward collision warning capabilities. It is suitable for use in passenger vehicles, commercial vehicles, and specialty vehicles, as well as in automotive night vision systems and autonomous driving solutions, ensuring driving safety at night, in conditions of intense glare, and during foggy or hazy weather.
