Excellent value for money: cost-effective and extremely practical
24/7 monitoring: easily withstands even harsh weather conditions
Water and dust resistant: IP69 protection rating, can be rinsed directly with water
Easy installation: analog CVBS video output, plug and play
Share:
Key Parameters
| Specifications | Indicators |
| Output Resolution | 384 x 288 |
| Field of View | 42°x 32° |
| Frame Rate | ≥25FPS |
| Start-up Time | ≤3.5s（normal temperature） |
| Communication Interface | RS232 |
| Video Output Interface | RCA connector |
| Video Output Format | Emulates CVBS |
| Video Output Resolution | PAL@720 × 576 NTSC@720 × 480 |
| Shutter | Auto Shutter Speed Compensation |
| Input Voltage | TYP 12V (DC 9V -32V ) |
| Power Consumption | ≤1W@(@12V, window defroster off) ≤5W@(@12V, window defroster on) |
| Operating Temperature | －40℃～＋85 ℃ |
| Detection Range | People（1.75*0.5m）≥100m Vehicles（1.75*1.75m）≥200m |
| Dimensions | ≤28*28*50mm |
| Weight | ≤120g |
| IP Rating | IP67&IP69K |
| Certifications | CE Certification |
Infrared camera systems deliver stable imaging in extreme conditions—such as total darkness, blinding glare, heavy fog, and dust—enabling reliable monitoring of the surrounding environment. This ensures driving safety and enhances operational efficiency.
These products are suitable for a wide range of vehicle types, including commercial vehicles, construction machinery, mining trucks, logistics vehicles, specialty vehicles, and emergency response vehicles.
Dedicated to the development of global in vehicle infrared technology
If you would like to learn more about safe driving solutions, please contact us
Related Products

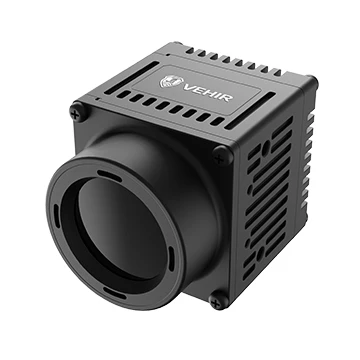

Vehicle-mounted infrared integrated device
