1. Intelligent Alerts: Supports real-time AI-powered infrared alerts for pedestrians, vehicles, and animals, along with a dedicated display for these alerts
2. Extensive Connectivity: Supports multiple protocols including CVBS, AHD, UVC, GMSL, compatible with mainstream in-vehicle systems and dashcams
3. Easy Installation: Compact, all-in-one design facilitates installation and setup
4. Multiple resolution and field-of-view options, covering 256/640 high and low resolutions, with a variety of lens choices to suit different application needs
5. Supports in-car system app integration (deep customization)
6. AI super-resolution algorithm: Superior image quality and clearer video
Share:
| Specifications | Indicators | ||
| Output Resolution | 640 x 512 | ||
| Field of View | 32°X 26° | 48°x 37° | 92°x 73° |
| Frame Rate | ≥25FPS（default 30FPS） | ||
| Start-up Time | ≤8s（normal temperature） | ||
| Communication Interface | CVBS/AHD:RS232 UVC: USB2.0 | ||
| Video Output Interface | 1. Aviation connector or RCA connector (CVBS/AHD) 2. Fakra Type B (GMSL) 3. USB port (UVC protocol) |
||
| Video Output Format | Supports CVBS, AHD, GMSL, and UVC (optional) | ||
| Video Output Resolution | 1. 640×512 (GMSL/UVC) 2. 720p (default)/1080p (AHD) 3. PAL (default)/NTSC (CVBS) |
||
| Video Output Latency | ≤150ms | ||
| Shutter | Supports the no-stop algorithm | ||
| Input Voltage | TYP 12V (DC 9V–36V) / POC coaxial power supply / USB power supply (Depending on the interface protocol) |
||
| Power Consumption | ≤3W (@12V without window heating enabled) ≤6W (@12V with window heating enabled) |
||
| Operating Temperature | －40℃～＋85 ℃ | ||
| Detection Range | People：≥450m Vehicles：≥600m Animals：≥450m |
People：≥300m Vehicles：≥400m Animals：≥300m |
People：≥150m Vehicles：≥200m Animals：≥150m |
| Recognition Range | People：≥120m Vehicles：≥150m Animals：≥120m |
People：≥90m Vehicles：≥120m Animals：≥90m |
People：≥45m Vehicles：≥50m Animals：≥45m |
| Dimensions | ≤32mm*32mm*40mm(Excluding connectors and brackets) | ||
| Weight | ≤80g | ||
| IP Rating | IP67&IP69K | ||
| Certifications | CE Certification | ||
This product is suitable for customers who need a vehicle-mounted infrared camera with flexible integration options, not only a standalone camera display.
VEHIR AI Vehicle-Mounted Infrared Integrated Device is an automotive thermal camera for aftermarket vehicle electronics integration. It is designed for dashcam manufacturers, DVR/MDVR suppliers, fleet safety terminal companies, vehicle display manufacturers, commercial vehicle retrofit providers and aftermarket safety system integrators.
This AI automotive thermal camera combines thermal imaging, AI target detection and multiple output options in one compact vehicle-mounted device. It detects heat-based targets such as pedestrians, vehicles and animals in low-visibility road conditions.
Depending on the selected configuration, this vehicle thermal camera can support CVBS, AHD, UVC or GMSL output for connection with different aftermarket vehicle electronics platforms.
Dashcam, DVR and MDVR suppliers can integrate this aftermarket automotive thermal camera into their own vehicle video systems.
Fleet safety terminal manufacturers can use this AI vehicle thermal camera as a thermal sensing input for commercial vehicle safety systems.
Vehicle display suppliers and smart rear-view mirror manufacturers can use this automotive thermal camera as a thermal image source for their own display products.
Commercial vehicle retrofit companies can use this vehicle-mounted infrared camera for trucks, buses, logistics vehicles, construction machinery, mining vehicles and special-purpose vehicles.
For a display-oriented thermal warning system, also view: N-Driver P303B with Screen.
Use real thermal imaging pictures to help buyers evaluate this AI automotive thermal camera in practical aftermarket vehicle applications.

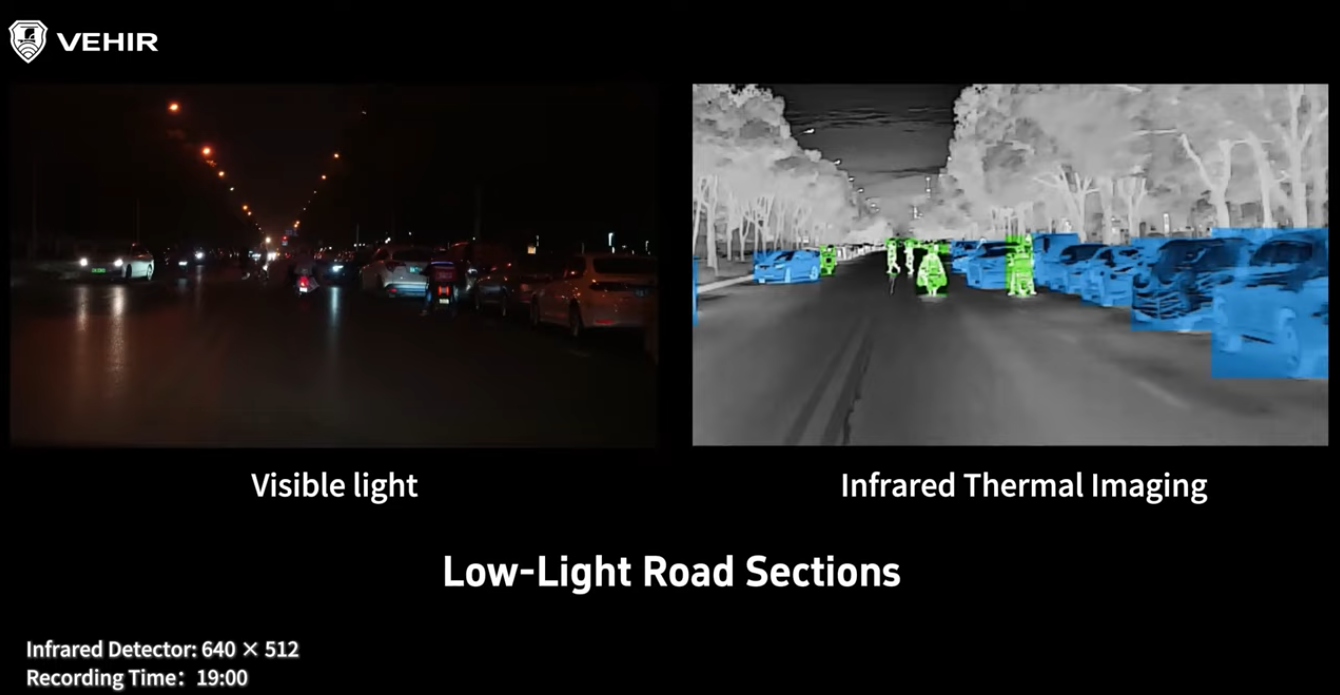

Thermal imaging performance on low-light road sections, helping detect heat-based targets when visible-light cameras and headlights are limited.
Vehicle thermal camera imaging under heavy fog conditions, showing how infrared thermal imaging supports target awareness when ordinary visible-light imaging is affected.

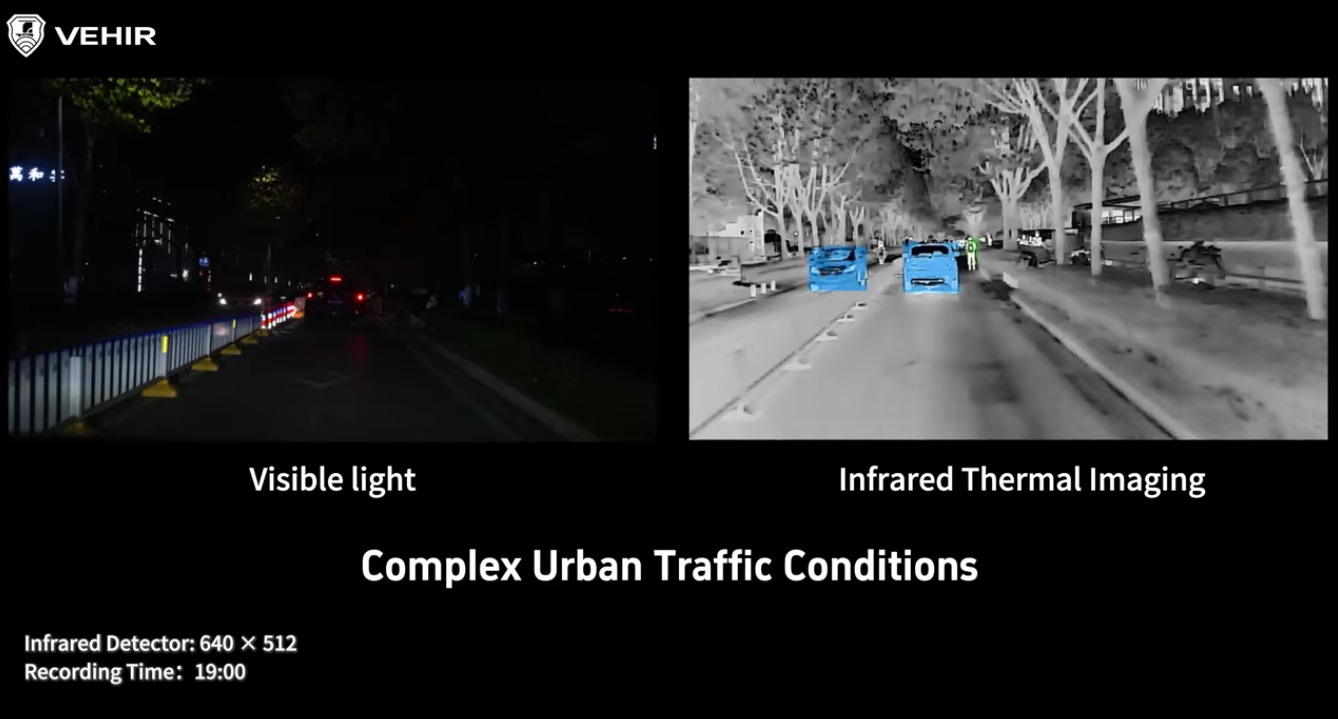

AI vehicle thermal camera imaging in complex urban traffic, suitable for evaluating pedestrian, vehicle and mixed-target detection.

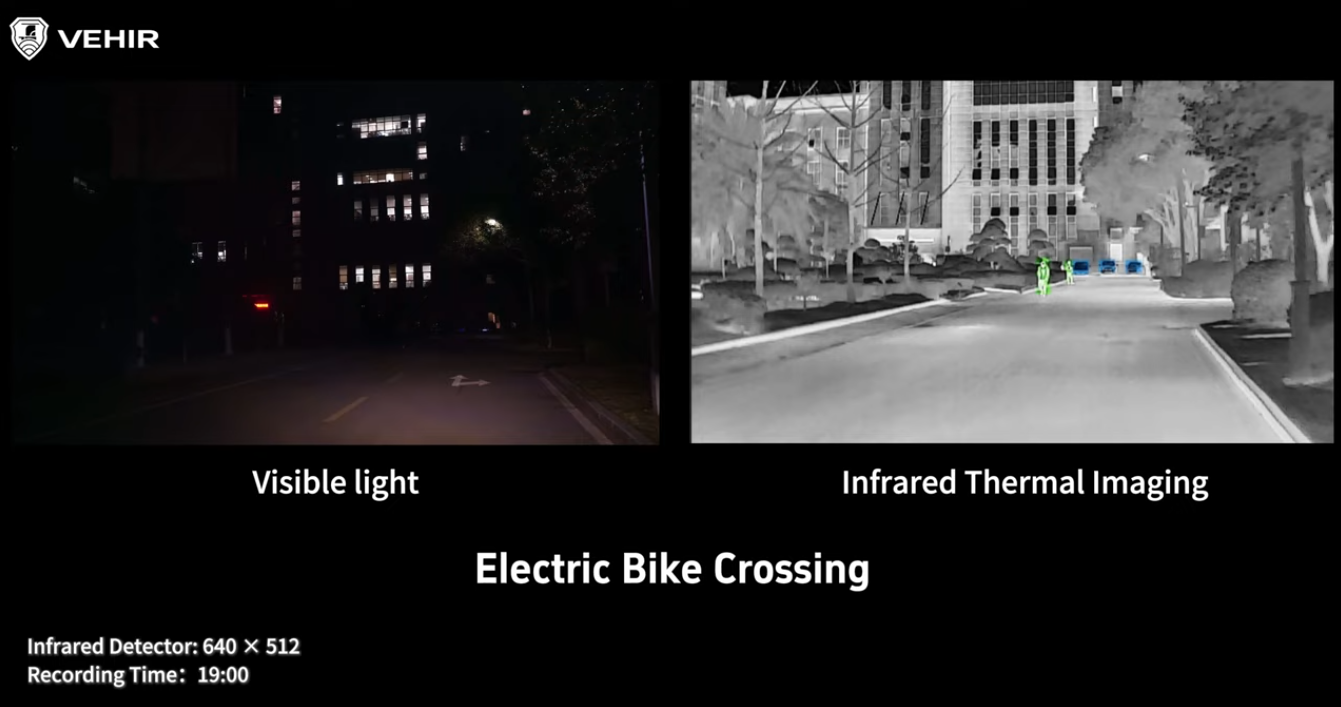

Thermal imaging example for electric bike crossing scenarios, supporting aftermarket vehicle safety systems where two-wheelers and pedestrians may enter the driving path unexpectedly.
| Output Interface | Suitable For | Typical Buyer Concern |
| CVBS | Traditional vehicle displays, basic DVR systems, retrofit monitors | Simple connection and wide compatibility |
| AHD | HD vehicle monitors, MDVR systems, aftermarket display products | Higher-definition analog video output |
| UVC | USB-based smart terminals, dashcams, embedded platforms | Software integration and USB video input |
| GMSL | Advanced automotive electronics and long-distance digital video transmission | Fakra Type B connection and vehicle system integration |
If the customer already has a dashcam, MDVR, display terminal or vehicle safety platform, the required interface should be confirmed before sample testing.
| FOV Configuration | Published Detection Direction | Recommended Use |
| 32° × 26° | People ≥450 m, Vehicles ≥600 m, Animals ≥450 m | Long-distance forward view, highway trucks, logistics vehicles, long-range road monitoring |
| 48° × 37° | People ≥300 m, Vehicles ≥400 m, Animals ≥300 m | Balanced front-view thermal awareness for commercial vehicles and aftermarket safety systems |
| 92° × 73° | People ≥150 m, Vehicles ≥200 m, Animals ≥150 m | Wide-angle near-field coverage, blind spot, side view, construction machinery and complex traffic scenes |
This AI vehicle thermal camera supports heat-based target detection for pedestrians, vehicles and animals. It is suitable for aftermarket systems that need thermal image input plus warning logic.
This vehicle-mounted infrared camera can be installed according to the customer’s vehicle structure and finished system design.
Power supply options include DC 9V–36V, POC coaxial power supply or USB power supply, depending on the selected configuration. Customers should confirm power design, connector type, cable routing and installation environment before ordering.
| Vehicle Type | Recommended Configuration Focus |
| Passenger Cars and SUVs | Compact installation, AHD/CVBS display connection, aftermarket night vision upgrade |
| Trucks and Logistics Vehicles | 32° × 26° or 48° × 37° FOV, AI warning, DC 9V–36V power, DVR/MDVR integration |
| Buses and Coaches | Pedestrian warning, wide viewing coverage, display or fleet terminal connection |
| Construction Machinery | 92° × 73° wide FOV, IP67/IP69K protection, rugged installation planning |
| Mining Vehicles | Long-distance thermal awareness, dust/fog/night operation, durable exterior mounting |
| Special-Purpose Vehicles | GMSL/UVC output, custom App or platform integration, project-based configuration |
| Fleet Retrofit Projects | Standardized installation, batch supply, interface consistency and after-sales support |
For more commercial vehicle applications, visit: Commercial Vehicle Sector.
For special vehicle applications, visit: Special Purpose Vehicle Sector.
| Model | Better For | Main Difference |
| AI Vehicle-Mounted Infrared Integrated Device | Aftermarket integration, dashcam/DVR/MDVR, vehicle display and fleet terminal projects | More output options: CVBS, AHD, UVC and GMSL |
| N-Driver P303B with Screen | Fleet and commercial vehicle projects needing a display-oriented thermal warning system | Optional 6-inch display and system-kit positioning |
| N-Driver P102 | Simpler professional retrofit applications | Practical thermal camera option for selected vehicle upgrade needs |
| Professional Aftermarket Series | Trucks, fleets, construction machinery and special vehicles | Full professional aftermarket product range |
For commercial vehicle and aftermarket integration projects, reliability must be checked before purchase.
For outdoor commercial vehicle installation, customers should confirm:
For service support, visit: After-Sales Service.
VEHIR supplies automotive thermal cameras, vehicle-mounted infrared cameras and thermal imaging products for vehicle safety and aftermarket integration projects.
For distributor cooperation, visit: Become a Distributor.
For product documents, visit: Product Catalog.
It is an AI automotive thermal camera that combines infrared thermal imaging, target detection and vehicle-compatible output options in one compact device.
Yes. It is suitable for dashcam manufacturers, DVR/MDVR suppliers, vehicle display manufacturers, fleet safety terminal companies, retrofit solution providers and aftermarket vehicle safety brands.
The product supports CVBS, AHD, UVC and GMSL output options, depending on the selected configuration.
Choose 32° × 26° for longer-distance forward observation, 48° × 37° for balanced front-view thermal awareness, and 92° × 73° for wide-angle near-field or blind-spot applications.
Yes. The product supports AI detection for pedestrians, vehicles and animals. Actual performance depends on lens configuration, installation position, weather, target distance and customer-side system design.
Yes. It can be evaluated for connection with compatible dashcams, DVR/MDVR systems, vehicle displays, smart rear-view mirrors and fleet safety terminals.
The product supports DC 9V–36V power input, depending on configuration, making it suitable for many passenger vehicle and commercial vehicle applications.
Yes. VEHIR can discuss output interface, connector, cable, housing, App integration and project-specific requirements based on application, order volume and development stage.
Tell us your vehicle type, installation position, required field of view, output interface, host device, power supply method and expected quantity. VEHIR will help evaluate the right AI vehicle-mounted infrared camera configuration for your aftermarket integration project.
